Manufacturing | Our Machines

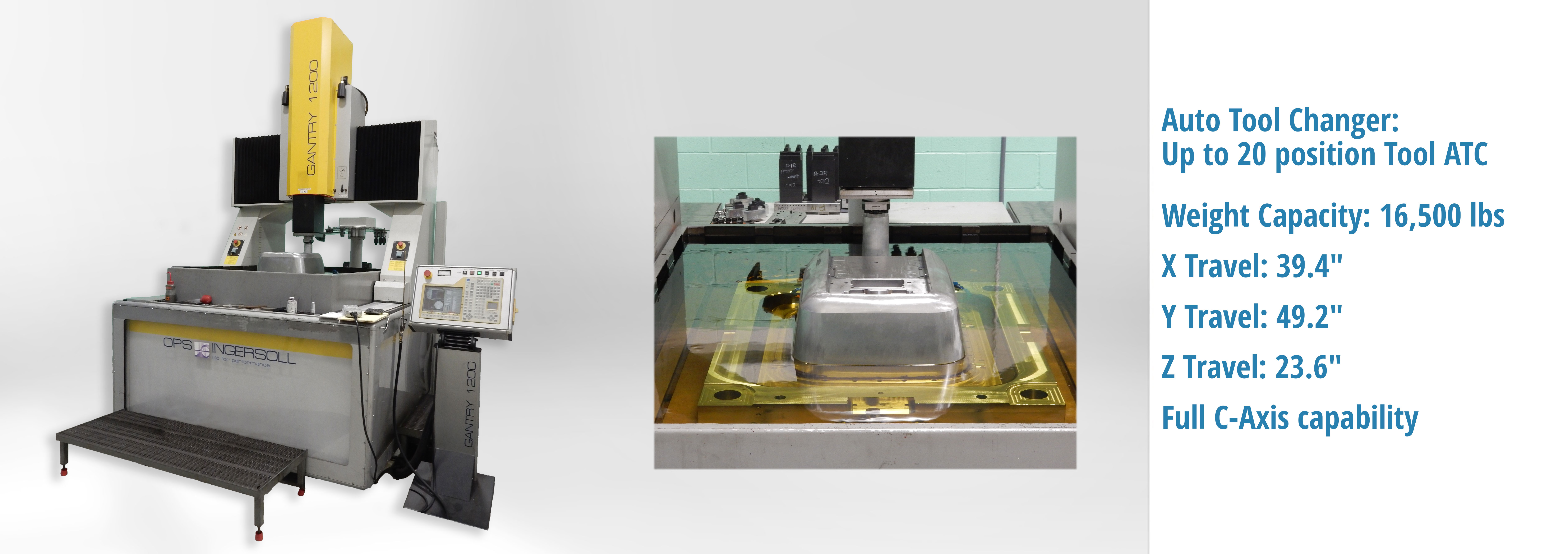

Automatic Tool Changer: Up to 20 position Tool ATC
Weight Capacity: 16,500 lbs
X Travel: 39.4"
Y Travel: 49.2"
Z Travel: 23.6"
Full C-Axis capability

Ingersoll Gantry 1200

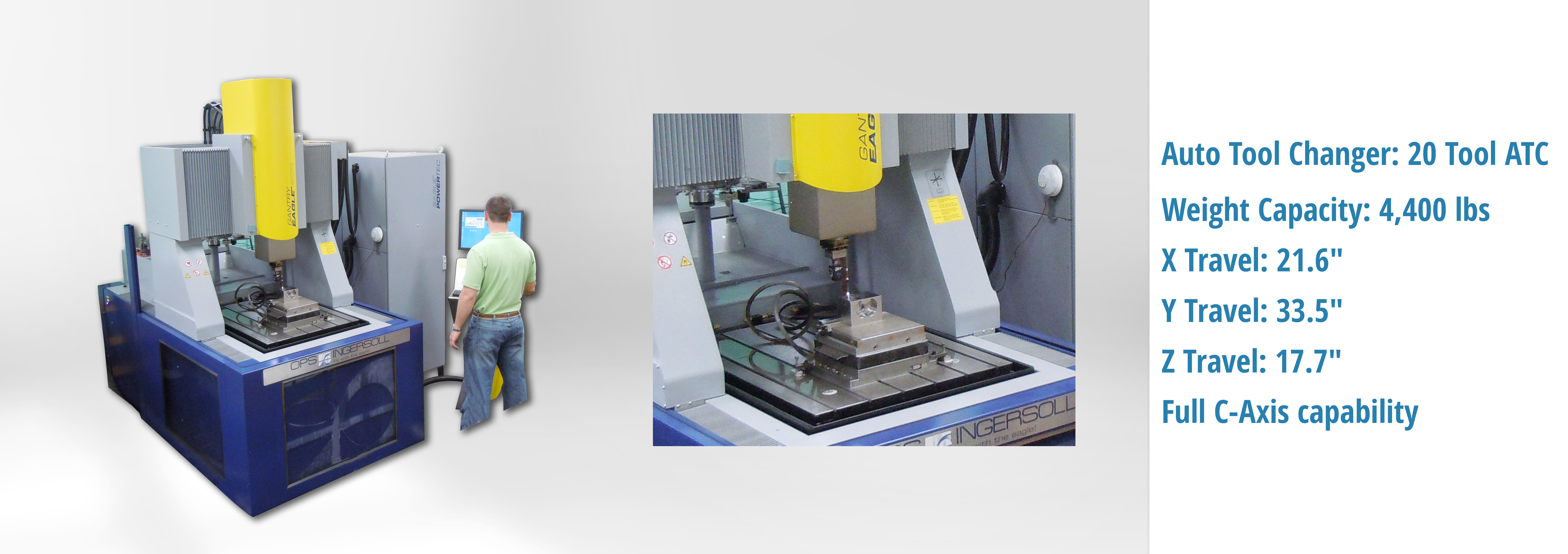

Automatic Tool Changer: 20 Tool ATC
Weight Capacity: 4,400 lbs
X Travel: 21.6”
Y Travel: 33.5”
Z Travel: 17.7”
Full C-Axis capability

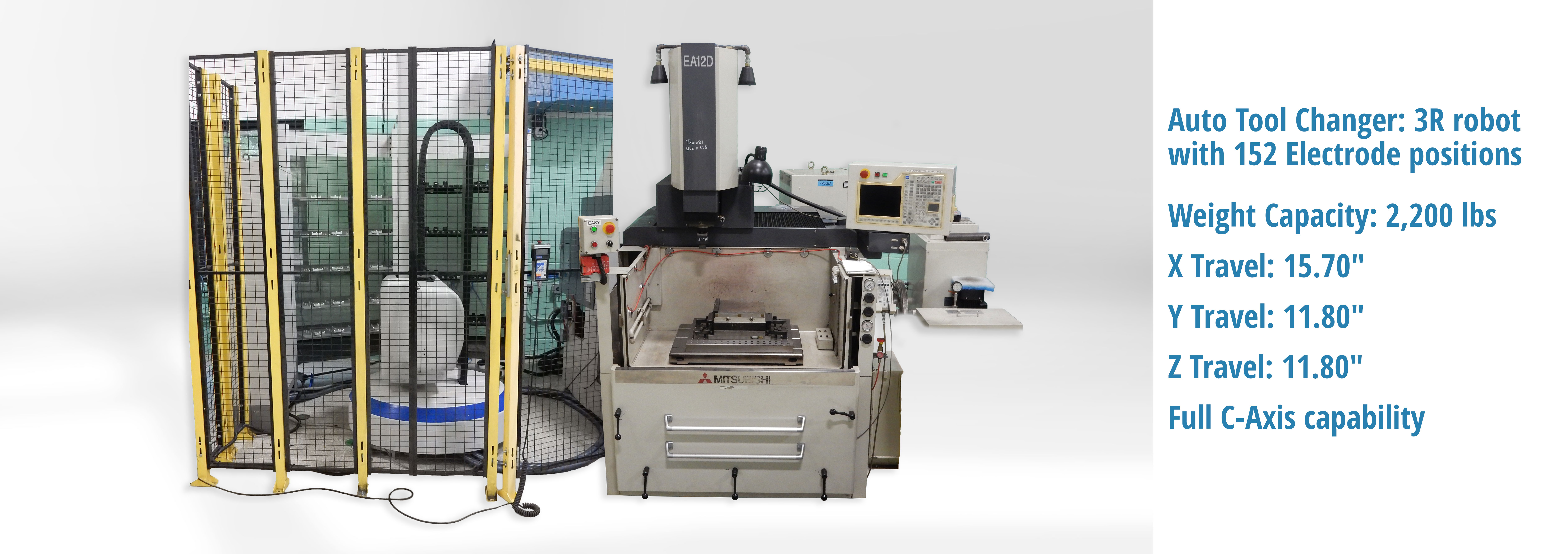

Automatic Tool Changer: 3R robot
152 Electrode positions
Weight Capacity: 2,200 lbs
3R Robot Weight Capacity: 300 lbs
X Travel: 15.70"
Y Travel: 11.80"
Z Travel: 11.80"
Full C-Axis capability

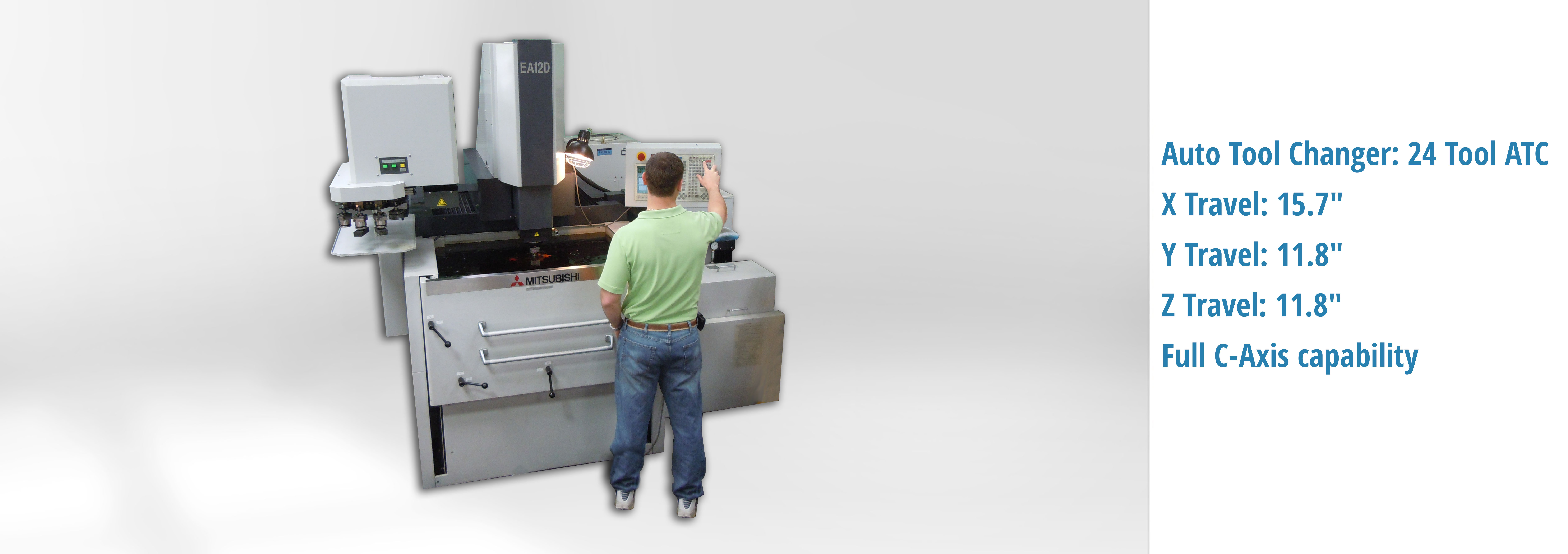

Mitsubishi EA12D
with robot

Automatic Tool Changer: 24 Tool ATC
X Travel: 15.7”
Y Travel: 11.8”
Z Travel: 11.8”
Full C-Axis capability

MITSUBISHI EA12D

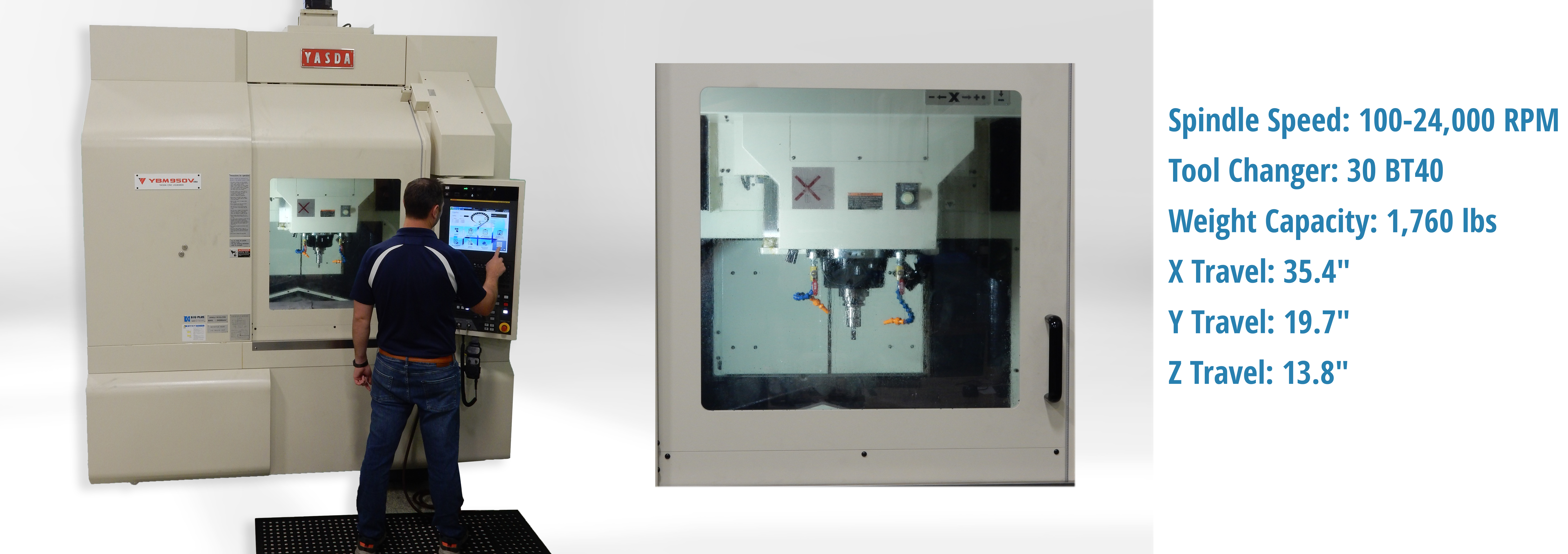

3 Axis Vertical
Spindle Speed: 100-24,000 RPM
Tool Changer: 30 BT40
Weight Capacity: 1,760 lbs
X Travel: 35.4"
Y Travel: 19.7"
Z Travel: 13.8"

Yasda YMB-950V

Spindle Speed: 0-12,000 RPM
Spindle Taper: CAT50
Tool Changer: 30 Tool changer
Weight Capacity: 3,307 lbs
X Travel: 60.6"
Y Travel: 2 9.9"
Z Travel: 2 6.0"

OKK Nidec VM76RII

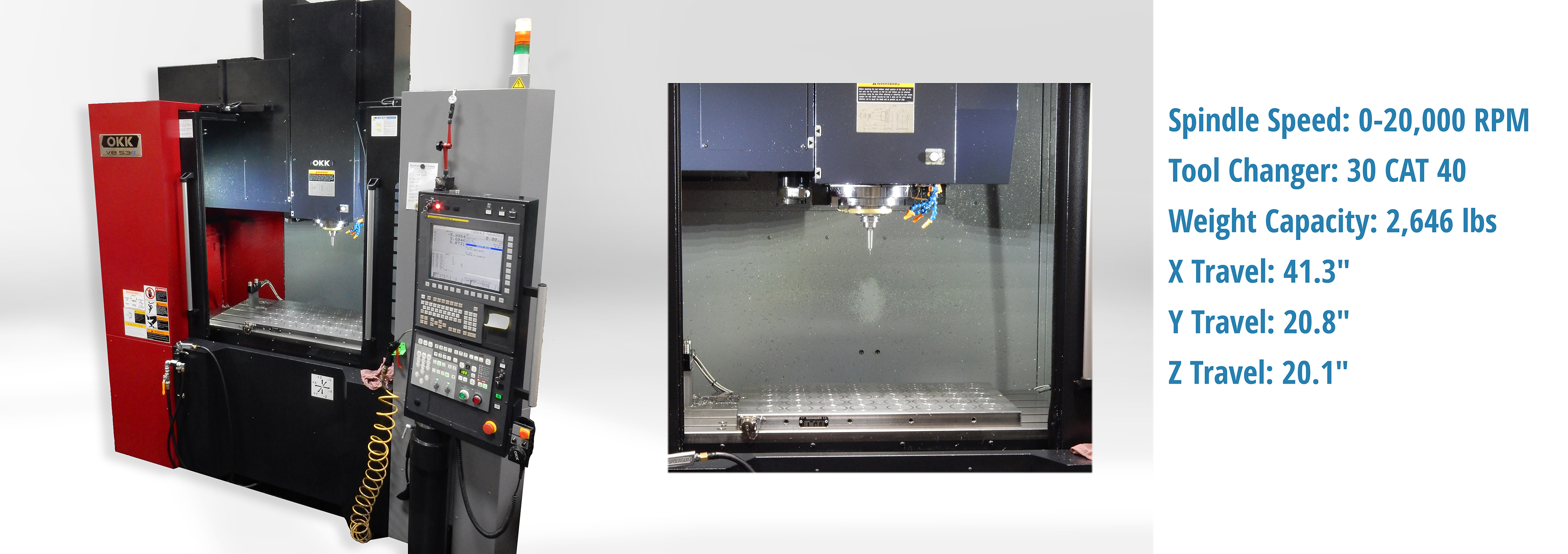

3 Axis Vertical
Spindle Speed: 0-20,000 RPM
Tool Changer: 30 CAT 40
Weight Capacity: 2,646 lbs
X Travel: 41.3"
Y Travel: 20.8"
Z Travel: 20.1"

OKK VB53

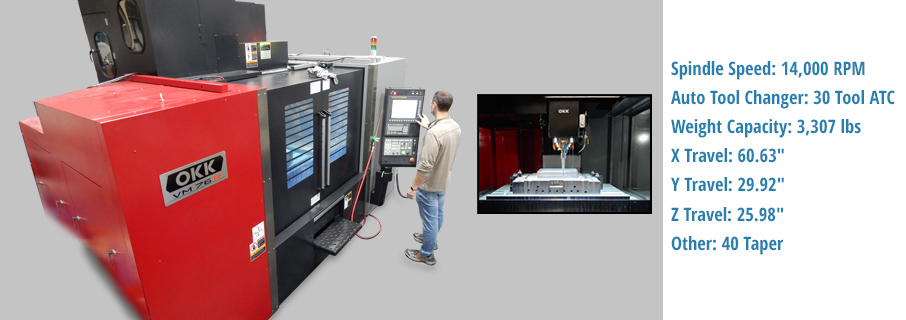

3 Axis Vertical
Spindle Speed: 14,000 RPM
Automatic Tool Changer: 30 Tool ATC
Weight Capacity: 3,307 lbs
X Travel: 60.63"
Y Travel: 29.92"
Z Travel: 25.98"
Other: 40 Taper

OKK VM76

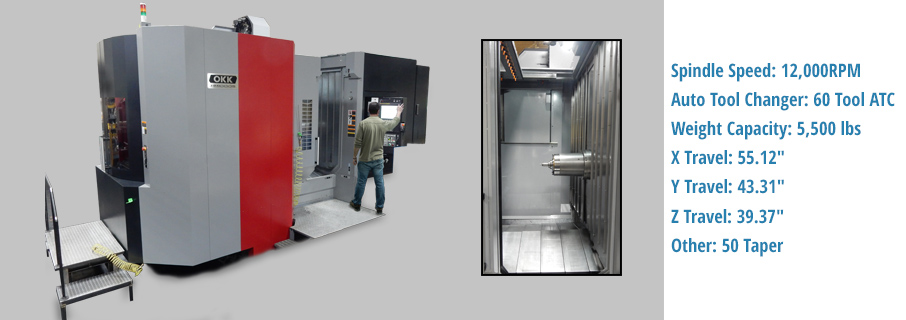

4 Axis Horizontal
Spindle Speed: 12,000 RPM
Automatic Tool Changer: 60 Tool ATC
Weight Capacity: 5,500 lbs
X Travel: 55.12"
Y Travel: 43.31"
Z Travel: 39.37"
Other: 50 Taper

OKK HM1000S

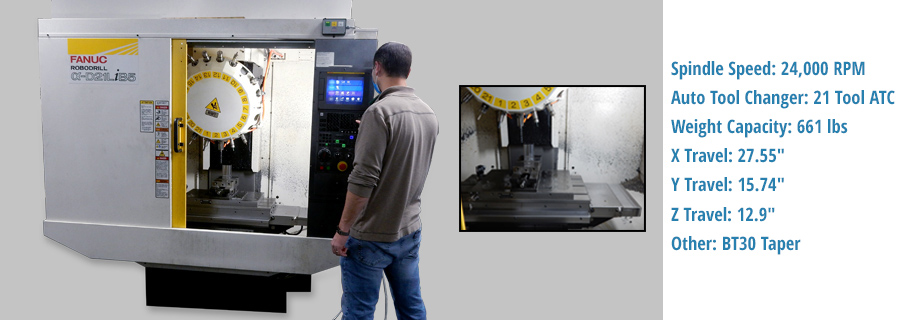

3 Axis
Spindle Speed: 24,000 RPM
Automatic Tool Changer: 21 Tool ATC
Weight Capacity: 661 lbs
X Travel: 27.55"
Y Travel: 15.74"
Z Travel: 12.9"
Other: BT30 Taper

FANUC Robo Drill

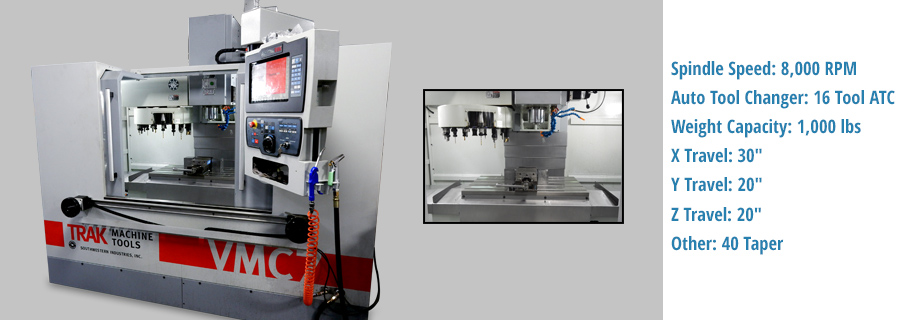

3 Axis
Spindle Speed: 8,000 RPM
Weight Capacity: 1,000 lbs
X Travel: 30"
Y Travel: 20"
Z Travel: 20"

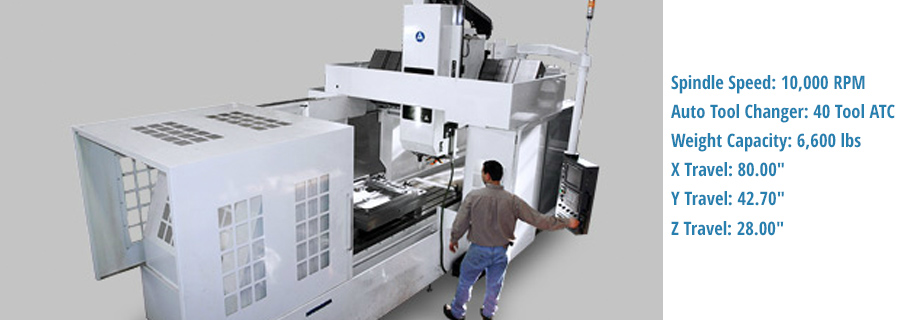

Poto-Track VMC7

3 Axis
Spindle Speed: 10,000 RPM
Automatic Tool Changer: 40 Tool ATC
Weight Capacity: 6,600 lbs
X Travel: 80.00"
Y Travel: 42.70"
Z Travel: 28.00"

Kitamura Bridge 8

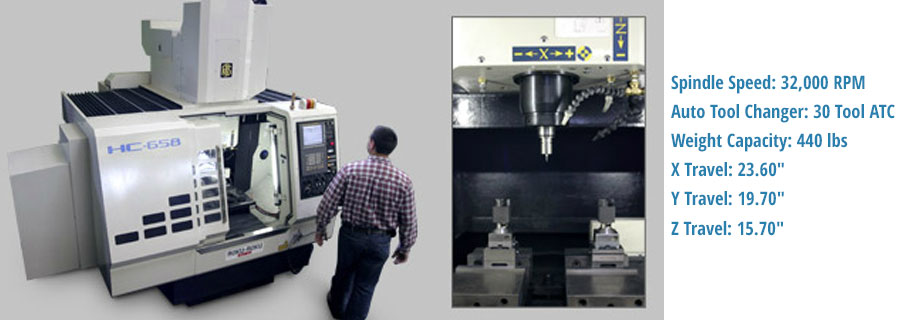

4 Axis
Spindle Speed: 32,000 RPM
Automatic Tool Changer: 30 Tool ATC
Weight Capacity: 440 lbs
X Travel: 23.60"
Y Travel: 19.70"
Z Travel: 15.70"

ROKU-ROKU HC-658

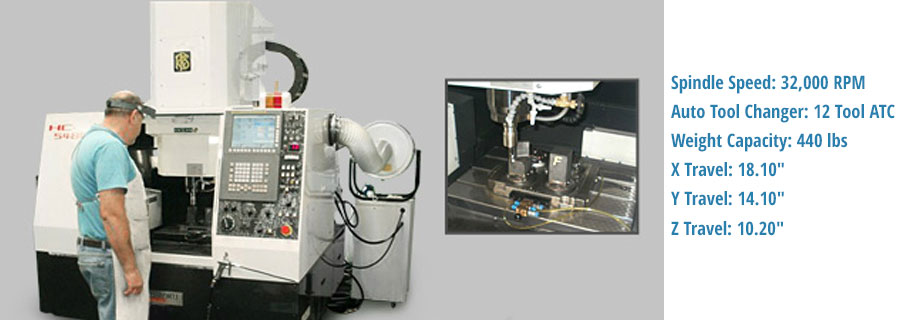

4 Axis
Spindle Speed: 32,000 RPM
Automatic Tool Changer: 12 Tool ATC
Weight Capacity: 440 lbs
X Travel: 18.10"
Y Travel: 14.10"
Z Travel: 10.20"

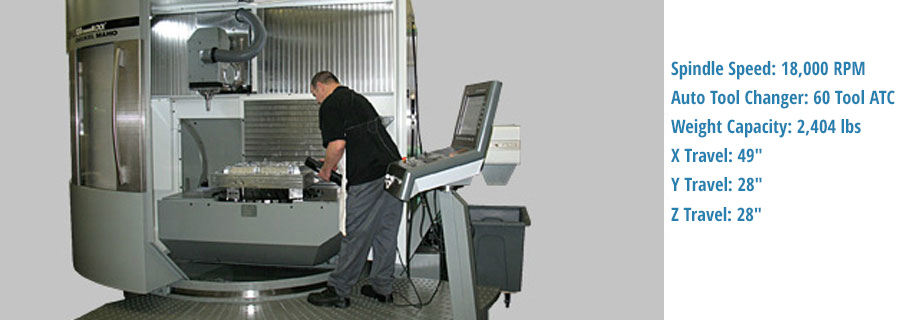

ROKU-ROKU HC-548EX

5 Axis
Spindle Speed: 18,000 RPM
Automatic Tool Changer: 60 Tool ATC
Weight Capacity: 2,404 lbs (rotary)
X Travel: 49.00"
Y Travel: 28.00"
Z Travel: 28.00"
2,425 lbs (fixed) rotary table: 31.5 Max. Dia.

Deckel DMU 100

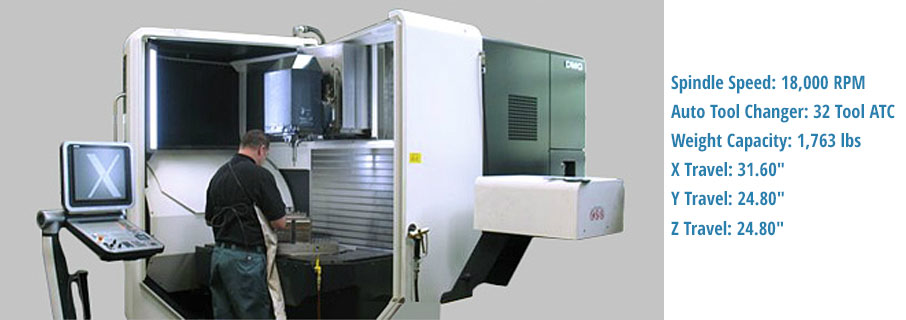

5 Axis
Spindle Speed: 18,000 RPM
Automatic Tool Changer: 32 Tool ATC
Weight Capacity: 1,763 lbs (rotary)
X Travel: 31.60"
Y Travel: 24.80"
Z Travel: 24.80"
1,984 lbs (fixed) rotary table: 27.5 Max. Dia.

Deckel DMU 80

5 Axis Machine
Spindle Speed: 18,000 RPM
Automatic Tool Changer: 60 Tool ATC
Weight Capacity: 1,100 lbs
X Travel: 25.60"
Y Travel: 25.60"
Z Travel: 22.10"

Deckel DMU 65 MonoBlock

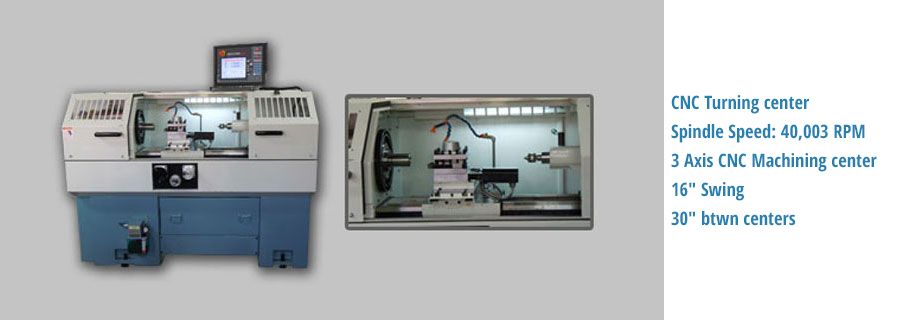

CNC Turning center
Spindle Speed: 40,003 RPM
3 Axis CNC Machining center
16" Swing
30" btwn centers

Trak Trl 1630 CNC Lathe

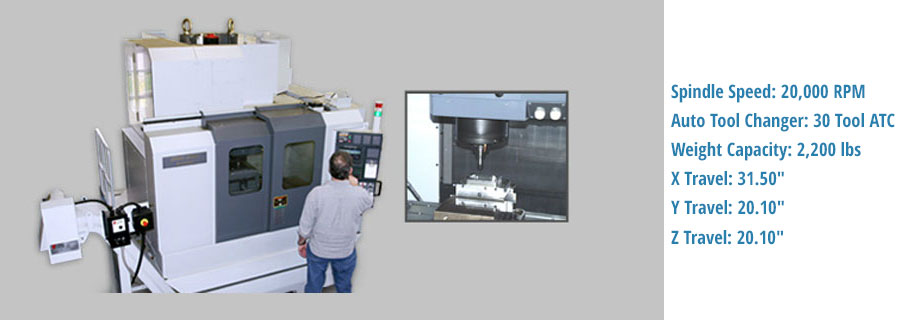

3 Axis Machining Center
Spindle Speed: 20,000 RPM
Automatic Tool Changer: 30 Tool ATC
Weight Capacity: 2,200 lbs
X Travel: 31.50"
Y Travel: 20.10"
Z Travel: 20.10"

Mori Seiki NVD 5000

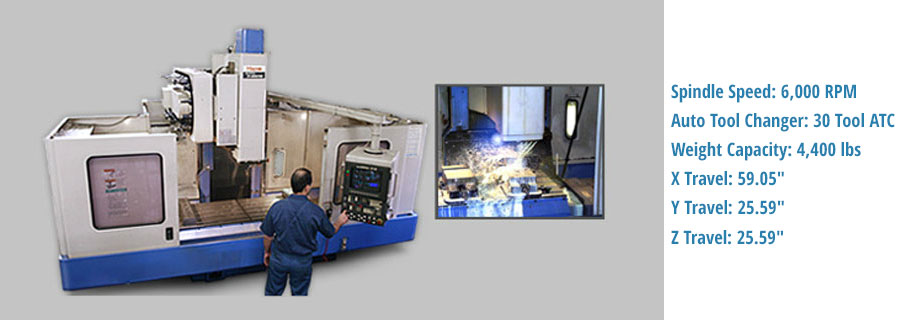

3 Axis Machining Center
Spindle Speed: 6,000 RPM
Automatic Tool Changer: 30 Tool ATC
Weight Capacity: 4,400 lbs
X Travel: 59.05"
Y Travel: 25.59"
Z Travel: 25.59"

Mazak V655/60

3 Axis Machining Center
Spindle Speed: 6,000 RPM
Automatic Tool Changer: 20 Tool ATC
Weight Capacity: 528 lbs
X Travel: 20.00"
Y Travel: 14.00"
Z Travel: 14.00"

Kitamura Mycenter 1

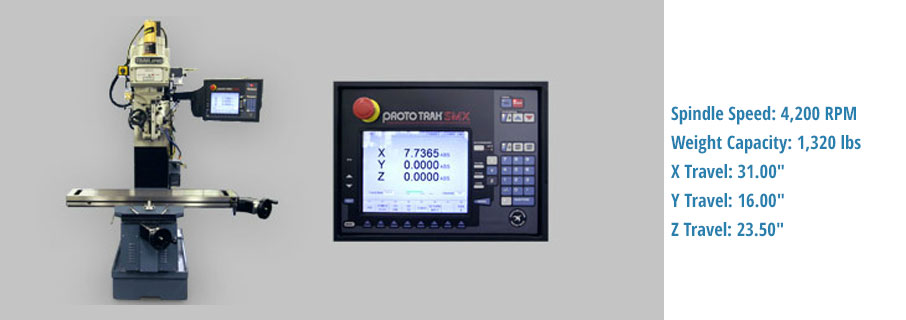

Spindle Speed: 4,200 RPM
Weight Capacity: 1,320 lbs
X Travel: 31.00"
Y Travel: 16.00"
Z Travel: 23.50"

(3) Proto TRAK DPM SX2

Click for Duplicators
1 Deckel KF 12 Duplicator
1 Deckel GK21 Duplicator

Duplicators

Click for Kiosk
1 Matrix Maxi 3D Printer
Cabinet organization

Kiosk

Click for Grinders
1 Chevalier Fully Automated Grinder
3 Okamoto Model 124 DX
2 Okamoto Linear Model 6-18B
1 Brown & Sharp 618 Mico-Master
1 Brown & Sharp 612 Mico-Master
1 Boyar Schultz Super Model
and more...

Grinders

Click for Milling Equipment
1 Series II Special 2 H.P. Bridgeport
4 Series I, 2 H.P. Bridgeport

Milling Equipment

Click for Drill Presses & Lathes
1 Carlton Radial 13" Column 4' Arm
1 American Hole Wizard Radial
1 Proto Trak Tri 1630 HS CNC Lathe
1 Mori-Seike 17" Tracer Lathe
1 Hardinge Model HLV-H Precision Lathe

Drill Presses & Lathes

Click for Saws
1 Marvel Series 8 Mark III band saw
1 DoAll 16" Band Saw with Hydraulic Table

Saws

Click for Welding Equipment
1 Alliance Laser Welder 350 watt
1 Linde UCC305 AC/DC Heliarc
1 Rocklin "Mold Mender" Micro Welder
1 Miller Portable AC/DC Heliarc 100 Amp
1 Acetylene Welding outfit
1 Waage Electric Hot Plate
and more

Welding Equipment

Click for Tryout & Fitting Presses
1 Reis Tryout Press TUS115
1 DME Jiffyshot Mold Sampler
1 PD Injecto Hand Molding Press
Mold Testing:
Mold testing avaliable as required

Tryout & Fitting Presses

Click for Quality Control
1 Jones & Lamson EPIC 130A 30" screen
1 Jones and Lamson Optical Comparator
3 4' x 5' Granite Layout Tables
1 3' x 6' Granite Layout Table
1 Wilson Rockwell Tester
2 Portable Rockwell Testers
and more...

Quality Control

Click for Compressors
1 Kaeser SK 30T Compressor
1 Kaeser SK 15T Compressor
2 Gardner Denver - Electra-Screw 25 H.P.
1 Ingersoll Rand 5 H.P.

Compressors

Click for Sandblasters
1 Empire PF3648 Glass Bead System
1 Vapor Blast Liquid Honing Machine
1 Portable Sandblast Machine

Sandblasters

Click for Specialized Equipment
1 CoolingCare advanced channel cleaning equipment
1 DME 12 zone manifold controller
1 PCS multi-zone manifold controller

Specialized Equipment

Click for Shipping & Handling
1 Die-Sep Mold Separator and Flipper
5 Robbins and Myers 5 Ton Electrical Bridge Crane & Hoist
1 Wright 1/2 Ton Crane and Electrical Hoist
and more...

Shipping & Handling

Click for Computers & Software
L&Z is a fully networked facility which allows for ease of information transfer from one department to another. Numerous work stations are located throughout the building and we have the capability to read in and translate most file formats.

Computers & Software

Click for Miscellaneous Equipment
Tooling Inventory System
Ejector Pin Cutter
